Full Loop: The Buildlog Case Study¶

In which knowledge flows both ways

---

---

The Setup¶

It's late. You've been debugging for three hours. The AI assistant just made the same mistake it made yesterday. And the day before.

You fix it. Again. Move on. Again.

That mistake could have been prevented. Somewhere in a design patterns book you read last year, there's a principle that would have caught this. The assistant doesn't know about that principle. And even if it did, it wouldn't know that this specific type of error is the one it keeps making.

What if the assistant could learn from books? What if it could learn from its own mistakes? What if those two knowledge sources could talk to each other?

That's what we built.

---

The Architecture¶

The architecture has two flows sharing one graph. Let's walk through both.

---

Part 1: Forward Flow¶

Connecting to the Graph¶

First, we need a graph. Memgraph Lab at localhost:3000 shows us what we're working with.

After authenticating (the credentials are memgraph/memgraph if you're using the default docker-compose), we connect and see our starting state:

988 nodes. 549 edges. Five domains of design pattern knowledge, extracted from book chapters we'd previously ingested.

The Concept Network¶

What does this knowledge actually look like? Let's query it:

MATCH (n)-[r]->(m) RETURN n, r, m LIMIT 50

Each red dot is a concept. Each line is a relationship. The clusters you see aren't random - they're domains of related knowledge.

The edges have types, and that matters.

Edge Types Are Everything¶

Early on, we made a mistake. We stored edge types as properties instead of labels:

-- WRONG: All edges look the same to graph algorithms
CREATE (a)-[:REL {type: "requires"}]->(b)

-- RIGHT: Edge type IS the relationship
CREATE (a)-[:REQUIRES]->(b)

The difference isn't academic. Graph algorithms like PageRank operate on relationship types. If everything is :REL, your analytics are useless.

Let's see what we actually have:

MATCH ()-[r]->()
RETURN DISTINCT type(r) AS edge_type, count(*) AS count
ORDER BY count DESC

Ten semantic relationship types:

Edge Type	Count	What It Means
SUPPORTS	141	A reinforces B
USES	117	A employs B
IMPLEMENTS	112	A realizes B
PART_OF	53	A is a component of B
REQUIRES	40	A depends on B
CHALLENGES	33	A conflicts with B
REFINES	25	A specializes B
SIMILAR_TO	15	A and B are analogous
ALTERNATIVE_TO	9	A and B are interchangeable
CONTRADICTS	4	A and B are mutually exclusive

This isn't just metadata. This is reasoning structure. When we later ask "what challenges test coverage?", we can traverse CHALLENGES edges to find answers no keyword search would surface.

Adding New Knowledge¶

Let's ingest Chapter 12: The Observer Pattern.

uv run qortex ingest file \
  "data/books/ch12_12_The_Observer_Design_Pattern.txt" \
  --domain observer_pattern \
  --backend anthropic \
  --save-manifest data/manifests/ch12_manifest.json

The extraction finds:

• 265 concepts (publisher-subscriber, loose coupling, event objects...)
• 139 edges (Observer IMPLEMENTS Loose Coupling, Publisher USES Event...)
• 6 explicit rules directly from the text
• 2 code examples

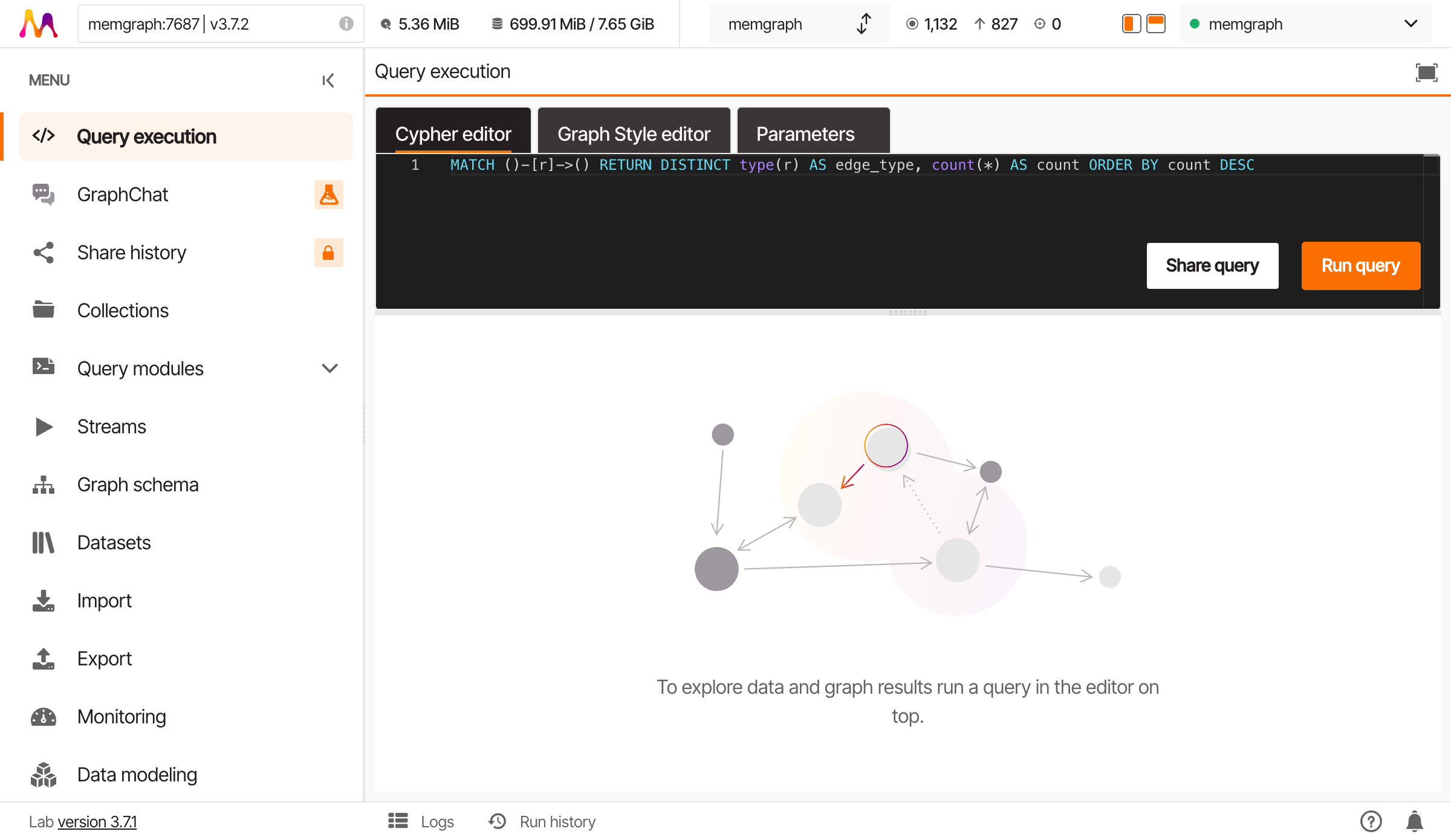

After loading:

1,132 nodes. 827 edges. The Observer Pattern knowledge is now part of the graph.

Domain Distribution¶

Where does all this knowledge live?

MATCH (n:Concept)
RETURN n.domain AS domain, count(*) AS concepts
ORDER BY concepts DESC

Domain	Concepts
iterator_visitor_patterns	249
implementation_hiding	237
template_strategy_patterns	170
factory_patterns	158
observer_pattern	137
adapter_facade_patterns	137

Six domains. Over a thousand concepts. But which concepts matter most?

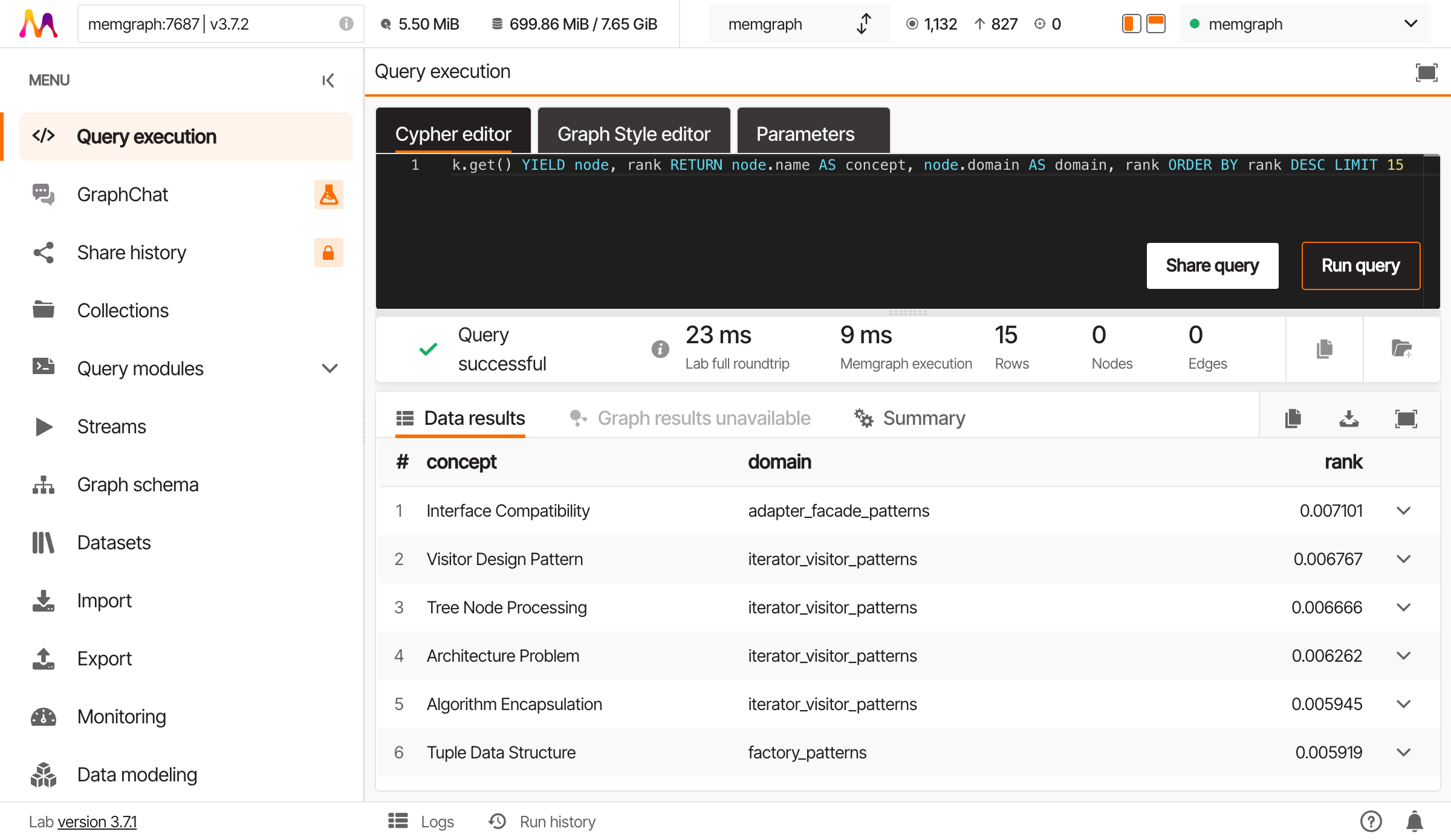

Finding the Hubs¶

PageRank tells us which nodes are most central - the concepts that connect to everything else:

CALL pagerank.get()
YIELD node, rank
RETURN node.name AS concept, node.domain AS domain, rank
ORDER BY rank DESC LIMIT 15

The top concepts:

1. Interface Compatibility (adapter_facade_patterns) - 0.0071
2. Visitor Design Pattern (iterator_visitor_patterns) - 0.0068
3. Tree Node Processing (iterator_visitor_patterns) - 0.0067
4. Architecture Problem (iterator_visitor_patterns) - 0.0063
5. Algorithm Encapsulation (iterator_visitor_patterns) - 0.0059

These are the hub concepts, the ideas that bridge multiple patterns. If an agent needs to understand design patterns, these are the concepts to prioritize.

We've ingested knowledge. We've analyzed its structure. Now comes the payoff: turning that knowledge into something an agent can use.

Projecting to Buildlog¶

Knowledge in a graph is useful for analysis, but agents need rules. The projection creates a YAML seed file that buildlog can ingest:

uv run qortex project buildlog \
  --domain observer_pattern \
  -p qortex_observer \
  -o /tmp/qortex_observer.yaml

135 rules projected. The seed file looks like this:

persona: qortex_observer
version: 1
rules:
  - rule: "Publishers should not know how subscribers process data"
    category: observer_pattern
    provenance:
      id: "observer_pattern:rule:0"
      domain: observer_pattern
      derivation: explicit
      confidence: 0.9

Copy it to the interop directory and ingest:

cp /tmp/qortex_observer.yaml ~/.qortex/seeds/pending/
buildlog ingest-seeds

[qortex] 1 ingested
  ✓ qortex_observer.yaml (qortex_observer, 135 rules)

The Observer Pattern is now influencing agent behavior during code reviews.

Recap: We took a book chapter, extracted a knowledge graph, ran analytics to find the most important concepts, and projected rules to an AI agent system. The forward flow is complete.

---

Part 2: Reverse Flow¶

So far we've moved knowledge in one direction: books to graph to agents. Useful, but incomplete.

The agents aren't just consumers of knowledge. They're also producers. Every time an agent catches itself making a mistake, that's information. Every time it learns a new pattern from reviewing code, that's data. What if we could feed that experience back into the graph?

The Emissions¶

Buildlog emits data about what happens during agent work:

~/.buildlog/emissions/pending/
├── learned_rules_*.json    (338 files)
├── mistake_manifest_*.json (192 files)
└── reward_signal_*.json    (28 files)

Let's look at a mistake manifest:

{
  "source_id": "buildlog:004be4c1743d",
  "domain": "experiential",
  "concepts": [{
    "name": "mistake:mistake-typo-20260206-203932",
    "properties": {
      "error_class": "typo",
      "description": "Variable name typo",
      "was_repeat": false,
      "session_id": "session-20260206-203932"
    }
  }]
}

The agent made a typo, and caught it. That's experience.

Hundreds of these files accumulate over time. Each one is a data point. Together, they form a picture of what the agent struggles with.

Loading Mistakes into the Graph¶

Those 192 mistake manifests are sitting in a directory. What if we could query them the same way we query design patterns? What if we could find connections between the mistakes agents make and the knowledge that might prevent them?

We transform the emissions into a qortex manifest and load them:

uv run qortex ingest load /tmp/buildlog_mistakes_manifest.json

Loaded manifest: experiential
  Concepts: 100
  Edges: 0
  Rules: 0

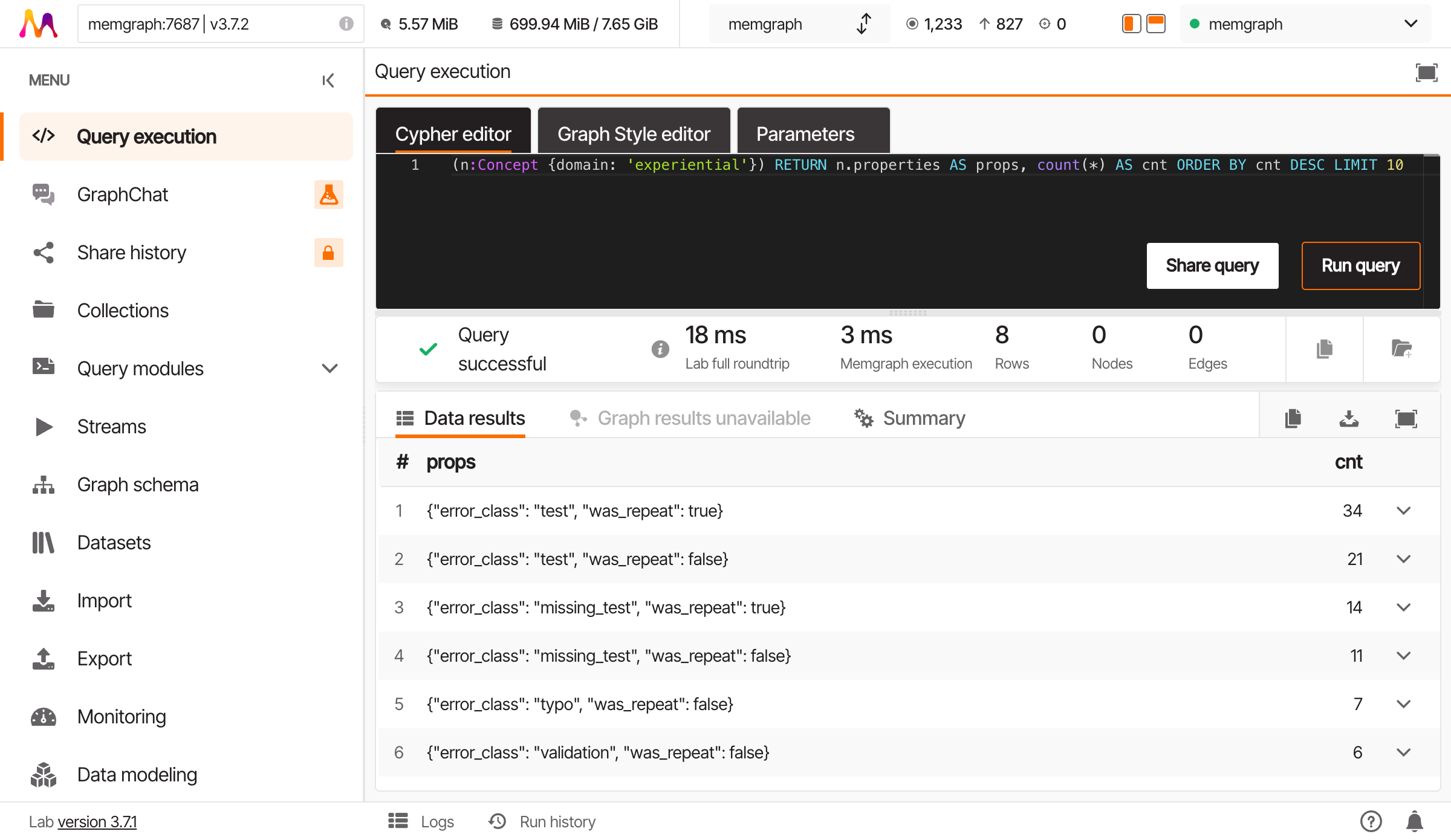

100 mistake concepts, now queryable. Let's see what they tell us:

MATCH (n:Concept {domain: 'experiential'})
RETURN n.properties AS props, count(*) AS cnt
ORDER BY cnt DESC

The Repeat Rate Problem¶

The data reveals a pattern:

Error Class	Total	Repeats	Rate
test	99	61	61.6%
missing_test	53	26	49.1%
security	13	0	0.0%
validation	13	0	0.0%
typo	13	0	0.0%

61.6% of test errors are repeats. The agent keeps making the same testing mistakes. Security errors? Zero repeats. They get fixed and stay fixed.

The signal? Test-related patterns need reinforcement. Security patterns consolidate more swiftly.

But knowing that the agent struggles with tests isn't enough. We need to know what knowledge would help.

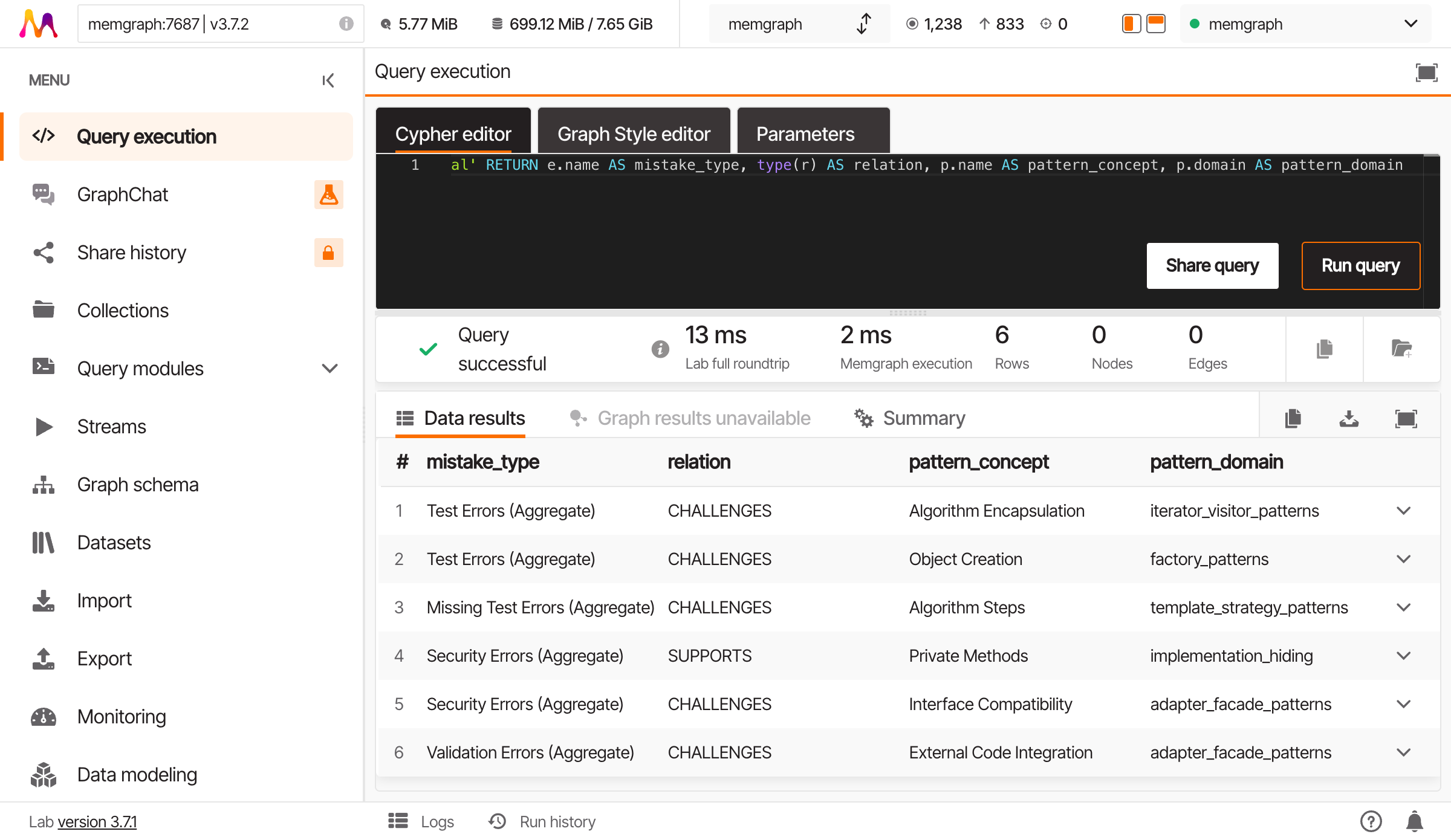

Cross-Domain Edges¶

The graph now contains both design pattern knowledge and experiential data. We can link mistakes to the design patterns that might prevent them:

MATCH (e:Concept {domain: 'experiential'})-[r]->(p:Concept)
WHERE p.domain <> 'experiential'
RETURN e.name, type(r), p.name, p.domain

Mistake Type	Relation	Pattern Concept	Domain
Test Errors (Aggregate)	CHALLENGES	Algorithm Encapsulation	iterator_visitor_patterns
Test Errors (Aggregate)	CHALLENGES	Object Creation	factory_patterns
Missing Test Errors (Aggregate)	CHALLENGES	Algorithm Steps	template_strategy_patterns
Security Errors (Aggregate)	SUPPORTS	Private Methods	implementation_hiding
Validation Errors (Aggregate)	CHALLENGES	External Code Integration	adapter_facade_patterns

The 61.6% repeat rate on test errors? It CHALLENGES Algorithm Encapsulation and Object Creation. The fix isn't "try harder" - it's "learn Iterator and Factory patterns better."

---

The Insight¶

We've walked both directions. Books flowed into rules. Mistakes flowed back into the graph. Now we have something neither source could provide alone.

The graph holds 1,238 nodes and 833 edges across 7 domains:

• Six domains of design pattern knowledge (from books)
• One domain of experiential knowledge (from agent mistakes)
• Cross-domain edges connecting them

When the test_terrorist persona reviews code, it should prioritize rules from iterator_visitor_patterns and factory_patterns. Those are the patterns that address the mistakes it keeps making.

That's not a heuristic we invented. That's what the graph told us.

---

What We Built¶

Step back and look at what just happened.

We read a book chapter. The Observer Pattern, 50 pages of design wisdom written by humans for humans. We fed it to qortex, which extracted 265 concepts, 139 relationships, and 6 explicit rules. We projected those rules to buildlog, where they now guide an AI agent during code reviews.

Books teach agents.

Then we looked at what the agent actually does. 192 mistake manifests, each one a moment where the agent caught itself doing something wrong. We loaded those into the same graph. We ran analytics. We found that 61.6% of test-related errors are repeats. We created cross-domain edges linking those persistent mistakes to the design patterns that might prevent them.

Agents teach the graph.

The two flows meet in the middle. The graph now contains design patterns from books alongside experiential data from agent mistakes, connected by cross-domain edges that link test errors to the patterns (like Algorithm Encapsulation) that might prevent them.

This changes everything about how we think about AI assistants.

The agent that keeps making the same testing mistakes? Don't just scold it. Don't write more rules by hand. Instead: find the design patterns that address the gap. Ingest the relevant chapters. Project the rules. Let the graph tell you what knowledge is missing, then fill the gap systematically.

The 61.6% repeat rate on test errors isn't a bug. It's a diagnostic. It points directly at iterator_visitor_patterns and factory_patterns as the knowledge domains that need reinforcement. The graph tells you where the gaps are.

The graph now holds 1,238 nodes and 833 edges across 7 domains, with two knowledge sources connected by cross-domain edges.

That's the loop.
