Welcome to the Hall¶

In which you learn to see

Pull up a chair. You've got data in a graph, but you're probably staring at it like a cat watching a fish tank. Let's fix that.

This tutorial teaches three things: 1. What a graph actually is (not tables in disguise) 2. Why it's useful (connections ARE the data) 3. How to see patterns no table could show you

What Is This Thing?¶

You've ingested text into something called a "knowledge graph." Let's be concrete about what that means.

subgraph-a-table-what-you-re-u

A table stores things in rows. Each row is isolated - you need JOINs to connect them.

A graph stores things as nodes, connected by edges. The connections ARE the data.

The Elements¶

Element	What It Is	Example
Node	A thing	`Encapsulation`, `Properties`, `Law of Demeter`
Edge	A relationship	`REQUIRES`, `SUPPORTS`, `IMPLEMENTS`
Property	Data on a node/edge	`name: "Encapsulation"`, `confidence: 0.95`
Label	A category	`:Concept`, `:Rule`, `:Domain`

Your ingested data created:

Concept nodes - the ideas extracted from your text
Rule nodes - explicit guidelines found in the text
REL edges - how concepts relate to each other

Connect to the Hall¶

Open Memgraph Lab at http://localhost:3000.

Click Quick Connect - if you used the default docker-compose, it's already configured.

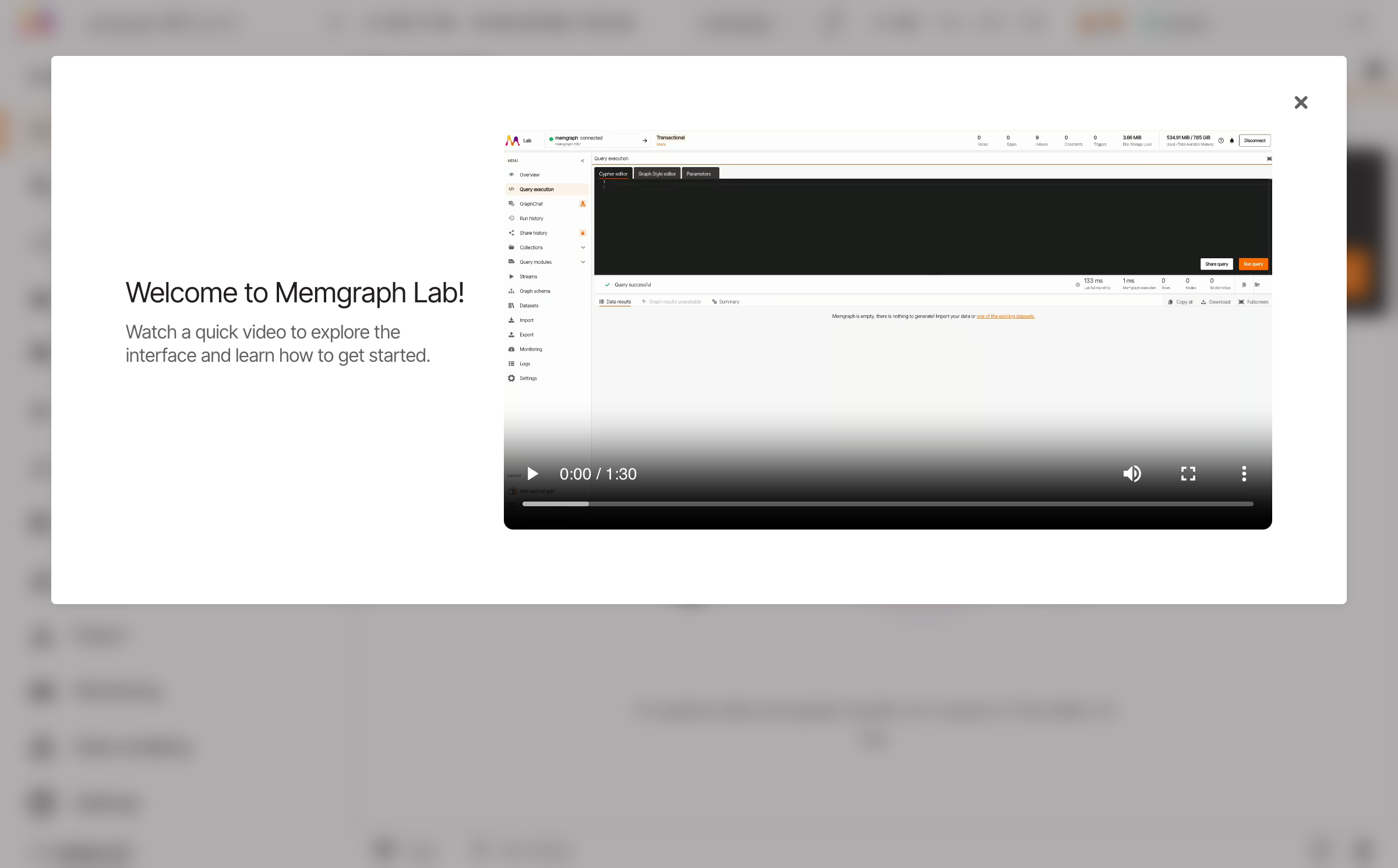

Memgraph Lab connected

Why Lab?¶

Lab is your window into the graph. You could use the raw Bolt protocol, but Lab gives you:

A query editor with syntax highlighting
Visual graph rendering
Data export
Query history

It's not magic - it's sending Cypher queries and rendering results. But it makes learning much faster.

Your First Query¶

In the query editor, type:

MATCH (n) RETURN labels(n), count(n);

Hit Run (or Ctrl+Enter).

What Just Happened?¶

Part	Meaning
`MATCH (n)`	Find all nodes, call each one `n`
`RETURN`	Give back...
`labels(n)`	...the labels (categories) of each node
`count(n)`	...and how many of each

You should see something like:

labels(n)	count(n)
["Concept"]	405
["Rule"]	7
["Domain"]	1

The Shape of Knowledge¶

Those numbers tell a story. ~400 concepts means your chapter was rich with ideas. 7 rules means it had explicit guidelines. 1 domain means everything belongs to a single knowledge area.

But numbers are just the start. Let's see the shape.

See the Graph¶

Run this query:

MATCH (c:Concept {domain: "implementation_hiding"})
RETURN c
LIMIT 50;

Switch to the Graph view (not Table).

50 concepts visualized

What You're Seeing¶

Each circle is a concept. The layout algorithm tries to position connected nodes near each other. Nodes with no connections float to the edges.

Try clicking a node. You'll see its properties in the sidebar:

id - unique identifier
name - human-readable name
description - what the concept means
domain - which knowledge area it belongs to
confidence - how certain the extraction was

See the Connections¶

Now let's see the relationships:

MATCH (a:Concept)-[r:REL]->(b:Concept)
WHERE a.domain = "implementation_hiding"
RETURN a, r, b
LIMIT 50;

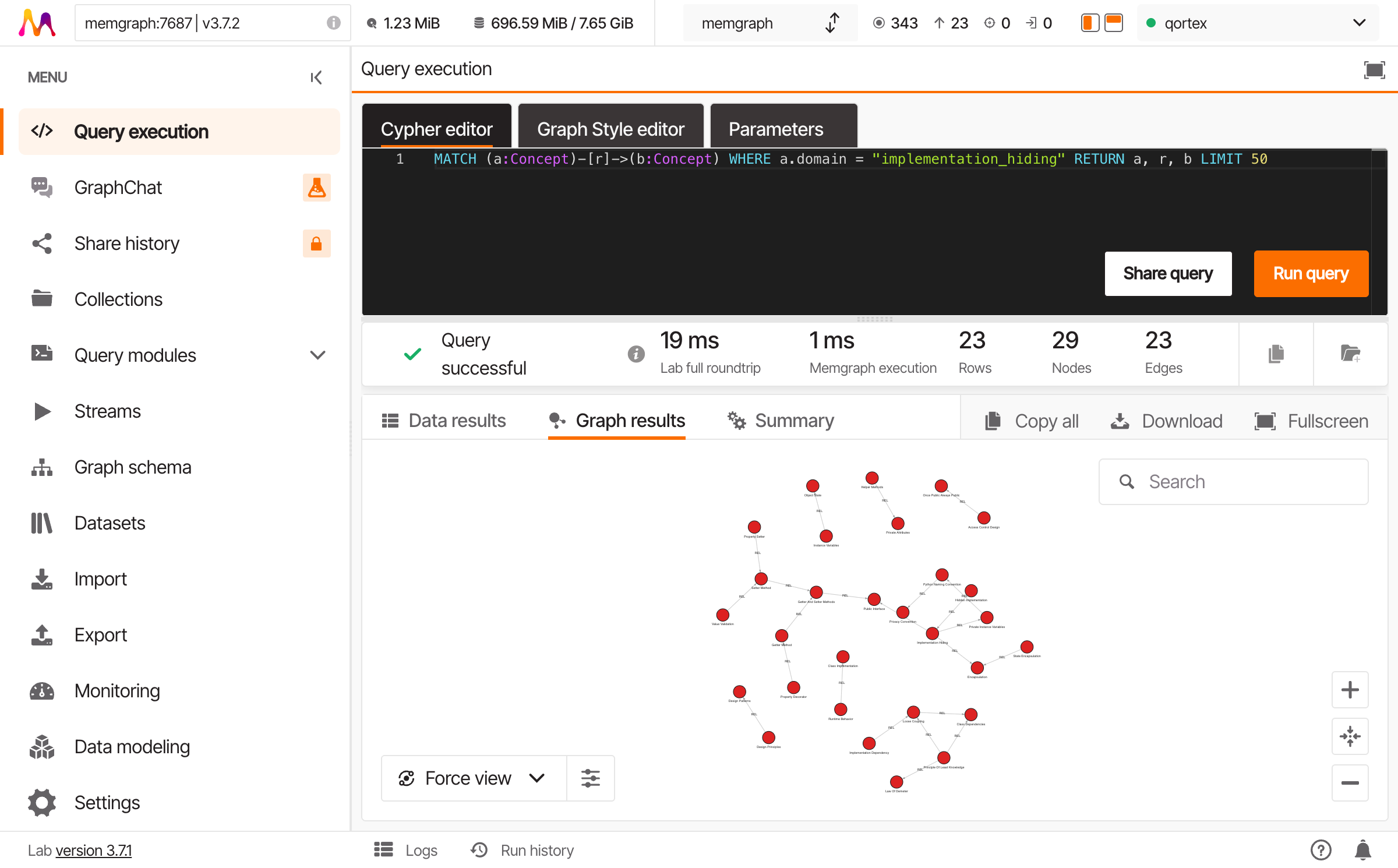

Connected graph

Reading the Visualization¶

Nodes are circles (concepts)
Edges are lines with arrows (relationships)
Direction matters - a -> b means "a relates to b"
Clusters form naturally around highly-connected concepts

Why This Matters¶

In a table, you'd need:

SELECT a.name, r.type, b.name
FROM concepts a
JOIN relations r ON a.id = r.source_id
JOIN concepts b ON b.id = r.target_id
WHERE a.domain = 'implementation_hiding'
LIMIT 50;

Three tables. Two joins. And you still can't visualize it without external tools.

In a graph, the relationship IS the query. You draw what you want to find.

Inspect the Rules¶

Rules are explicit guidelines extracted from your text:

MATCH (r:Rule {domain: "implementation_hiding"})
RETURN r.text AS rule, r.category
LIMIT 10;

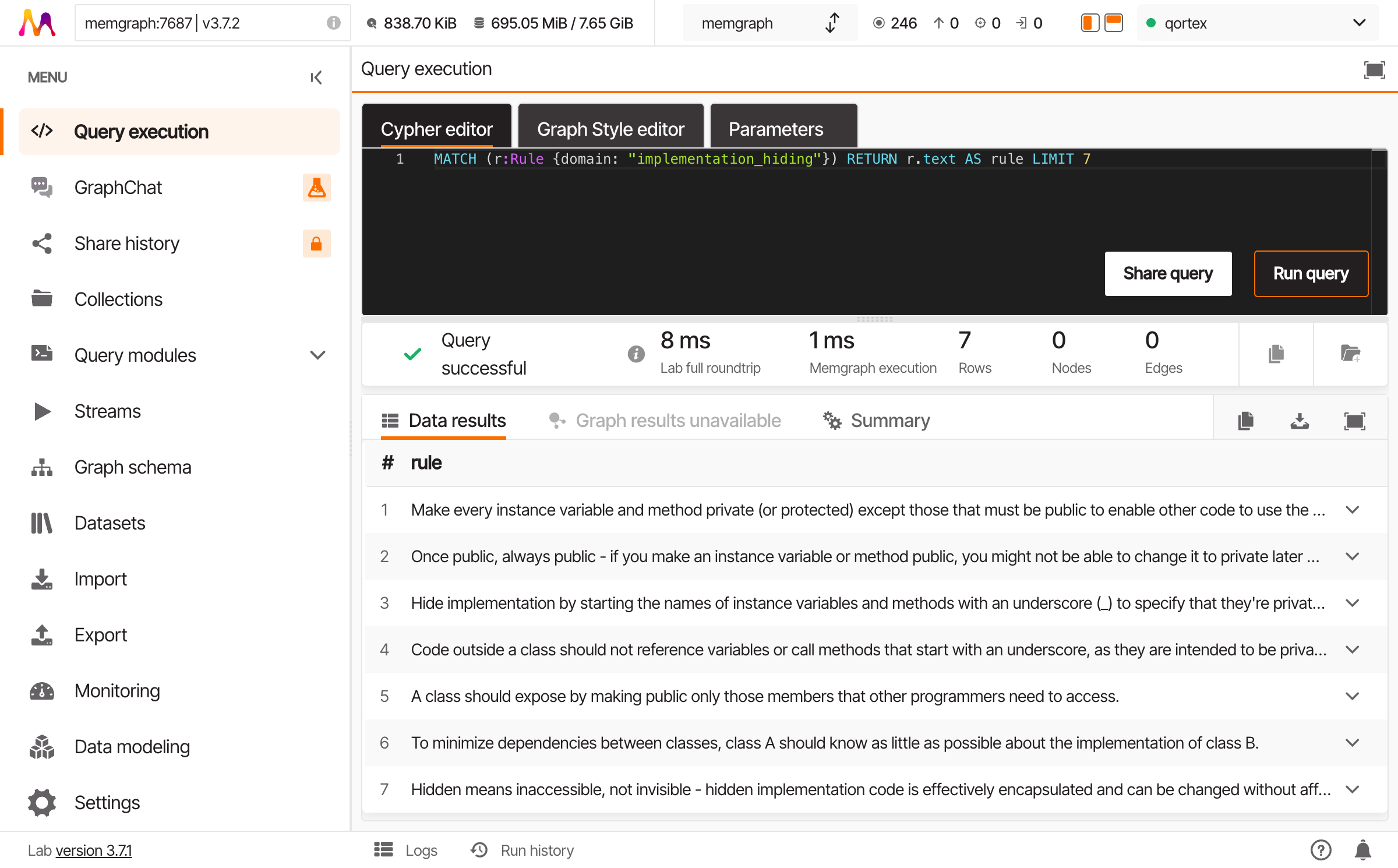

Rules query results

These are the "shoulds" and "musts" from your source material - statements like "Make every instance variable private" or "Use properties instead of direct access."

What You've Learned¶

You came here knowing nothing of graphs. Now you know:

Graphs store relationships as first-class citizens - not afterthoughts requiring joins
Cypher reads like ASCII art - (a)-[r]->(b) is literally a picture of what you want
Visualization reveals structure - clusters, hubs, and outliers become visible
Your data is richer than rows - concepts RELATE to each other, they don't just exist in isolation

Try This¶

Before moving on, experiment:

Find all concepts whose name contains "Private":

MATCH (c:Concept)
WHERE c.name CONTAINS "Private"
RETURN c.name, c.description;

Count how many relationships exist:
```
MATCH ()-[r:REL]->()
RETURN count(r);
```

Find the concept with the longest description:

MATCH (c:Concept {domain: "implementation_hiding"})
RETURN c.name, size(c.description) AS desc_length
ORDER BY desc_length DESC
LIMIT 1;

What's Next¶

You can see the graph now. Next up: learning to speak its language.

Continue to The Tongue of Queries
