The Tongue of Queries¶

In which you learn to speak

---

Cypher looks like ASCII art had a baby with SQL. That's because it is.

The patterns you write ARE the query. You're not describing what you want - you're drawing it.

---

Patterns Are Visual¶

Before we write queries, understand this: Cypher patterns are literal pictures.

(a)-[r]->(b)

That's not an abstraction. That's literally a picture: - (a) is a node - -[r]-> is a directed edge - (b) is another node

You bind symbols together to express what you seek:

---

MATCH: Drawing What You Seek¶

Every query starts with MATCH. You're saying "find me things that look like this."

Find All Concepts¶

MATCH (c:Concept)
RETURN c.name, c.description
LIMIT 10;

Part	Meaning
(c:Concept)	A node with label Concept, call it c
RETURN c.name, c.description	Give back these properties
LIMIT 10	Stop after 10 results

Find Relationships¶

MATCH (a:Concept)-[r:REL]->(b:Concept)
RETURN a.name, type(r), b.name
LIMIT 10;

Part	Meaning
(a:Concept)	Source node
-[r:REL]->	Edge of type REL, call it r
(b:Concept)	Target node
type(r)	The relationship type

---

WHERE: The Gatekeeper¶

WHERE filters results. It's the bouncer at the door of your query.

Filter by Property¶

MATCH (c:Concept)
WHERE c.name CONTAINS "Encapsulation"
RETURN c.name, c.description;

Filter by Domain¶

MATCH (c:Concept)
WHERE c.domain = "implementation_hiding"
RETURN c.name
LIMIT 20;

Combine Conditions¶

MATCH (c:Concept)
WHERE c.domain = "implementation_hiding"
  AND c.confidence > 0.8
RETURN c.name, c.confidence
ORDER BY c.confidence DESC;

Inline vs WHERE¶

These two queries are equivalent:

-- Inline filter
MATCH (c:Concept {domain: "implementation_hiding"})
RETURN c.name;

-- WHERE filter
MATCH (c:Concept)
WHERE c.domain = "implementation_hiding"
RETURN c.name;

Use inline {property: value} for simple equality. Use WHERE for complex conditions, ranges, or string operations.

---

Patterns: The Real Power¶

Here's where graph thinking diverges from SQL thinking.

SQL Mindset (find, then join)¶

"Find Encapsulation. Then find what it connects to."

-- Step 1: Find Encapsulation
MATCH (enc:Concept {name: "Encapsulation"})
RETURN enc;

-- Step 2: Separately find connections
MATCH (enc:Concept {name: "Encapsulation"})-[r]-(other)
RETURN other.name;

Graph Mindset (draw the shape)¶

"Find Encapsulation and its connections in one pattern."

MATCH (enc:Concept {name: "Encapsulation"})-[r]-(other:Concept)
RETURN enc.name, type(r), other.name;

The pattern (enc)-[r]-(other) is the query. You drew what you wanted.

Direction Matters¶

-- Outgoing edges only
MATCH (a)-[r]->(b) ...

-- Incoming edges only
MATCH (a)<-[r]-(b) ...

-- Either direction
MATCH (a)-[r]-(b) ...

The arrow shows direction. No arrow means "I don't care about direction."

---

Aggregation: Counting and Grouping¶

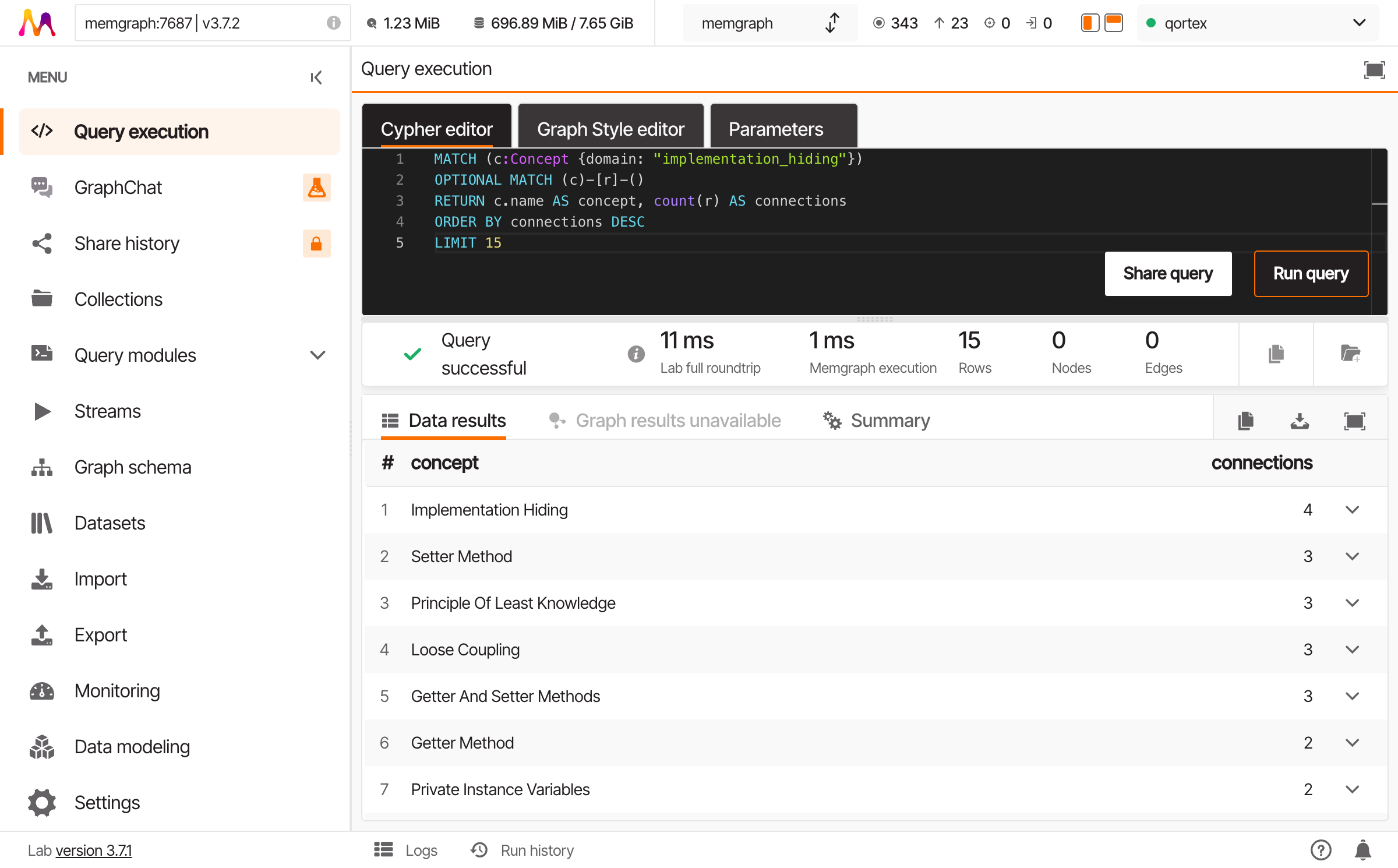

Count Connections Per Concept¶

MATCH (c:Concept {domain: "implementation_hiding"})
OPTIONAL MATCH (c)-[r]-()
RETURN c.name, count(r) AS connections
ORDER BY connections DESC
LIMIT 10;

Part	Meaning
OPTIONAL MATCH	Like LEFT JOIN - return c even if no edges
count(r)	Count matching edges
AS connections	Name the result column
ORDER BY ... DESC	Sort high to low

Why OPTIONAL?¶

Without OPTIONAL, concepts with zero connections disappear from results. With OPTIONAL, they appear with count(r) = 0.

Always use OPTIONAL MATCH when counting or aggregating relationships - otherwise you lose the lonely nodes.

---

WITH: Chaining Queries¶

WITH passes results from one part of a query to the next. It's like piping in Unix.

Find Highly-Connected Concepts, Then Get Their Edges¶

-- Step 1: Find concepts with 3+ connections
MATCH (c:Concept {domain: "implementation_hiding"})
OPTIONAL MATCH (c)-[r]-()
WITH c, count(r) AS degree
WHERE degree >= 3

-- Step 2: Get their actual connections
MATCH (c)-[r2]-(neighbor:Concept)
RETURN c.name, degree, type(r2), neighbor.name
ORDER BY degree DESC;

Collect Into Lists¶

MATCH (c:Concept {domain: "implementation_hiding"})-[r]-(neighbor:Concept)
RETURN c.name, collect(neighbor.name) AS connected_to
LIMIT 10;

collect() gathers values into a list - useful for seeing all connections at once.

---

Common Patterns¶

Find Concepts That REQUIRE Something¶

MATCH (a:Concept)-[r:REL]->(b:Concept)
WHERE r.type = "requires"
RETURN a.name AS concept, b.name AS requires
LIMIT 20;

Find Concepts Required By Multiple Others¶

MATCH (a:Concept)-[r:REL]->(foundation:Concept)
WHERE r.type = "requires"
WITH foundation, count(a) AS dependent_count
WHERE dependent_count > 1
RETURN foundation.name, dependent_count
ORDER BY dependent_count DESC;

Find Isolated Concepts (No Edges)¶

MATCH (c:Concept {domain: "implementation_hiding"})
WHERE NOT (c)-[]-()
RETURN c.name, c.description;

---

The Shape of Questions¶

Notice how each query is a shape:

(c)                     -- A single node
(a)-[r]->(b)            -- Two nodes, one edge
(a)-[r1]->(b)-[r2]->(c) -- A chain
(a)-[r]-(b)             -- Undirected connection

You're not writing instructions. You're drawing what you seek. The database finds things that match your drawing.

This is why graphs excel at relationship queries. In SQL, you describe steps: "join this, then filter that, then aggregate." In Cypher, you describe the shape: "find things that look like this."

---

Try This¶

1. Find all concepts whose description mentions "private":

   MATCH (c:Concept)
   WHERE c.description CONTAINS "private"
   RETURN c.name, c.description;

2. Count concepts per rule (via their concept_ids):

   MATCH (r:Rule {domain: "implementation_hiding"})
   RETURN r.text, size(r.concept_ids) AS concept_count
   ORDER BY concept_count DESC;

3. Find the most common relationship type:

   MATCH ()-[r:REL]->()
   RETURN r.type, count(*) AS frequency
   ORDER BY frequency DESC;

---

What's Next¶

You can speak the tongue now. Next: tracing paths - two hops, three hops, until you find what you didn't know you were looking for.

---

Continue to Following the Thread
